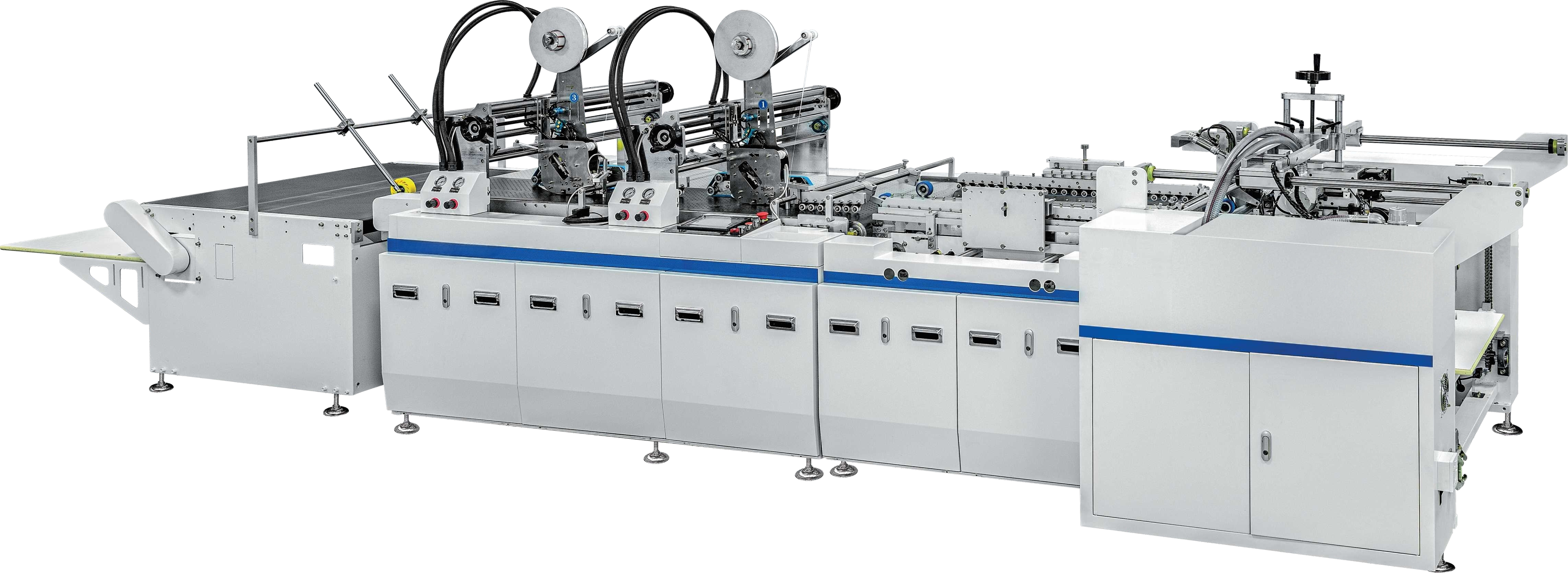

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine
This machine is used for applying long strips of double-sided tape to the surfaces of large sheets of cardstock, coated paper,posters,etc.
Key Features
- Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.
- Skew Correction Function: Ensures that paper feeding remains straight without skewing.
- Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds,enhancing efficiency.
- Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.
- Precise Adjustment of Sticker Head Offset:Screw rods,handles,and scales allow for accurate and easy adjustment of the sticker head's position.
- Human-Machine Interface(HMI)with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface,simplifying operation.
- Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction,ensuring smoother and more stable paper handling during the adhesive application process.
- Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.
Equipment Features
 |
|
|

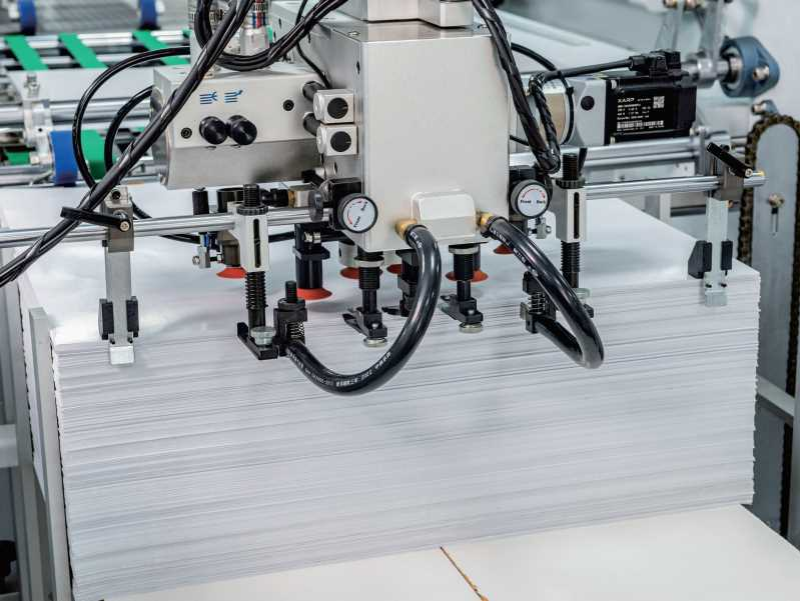

Top-Suction Feeder
For stable material pickup |

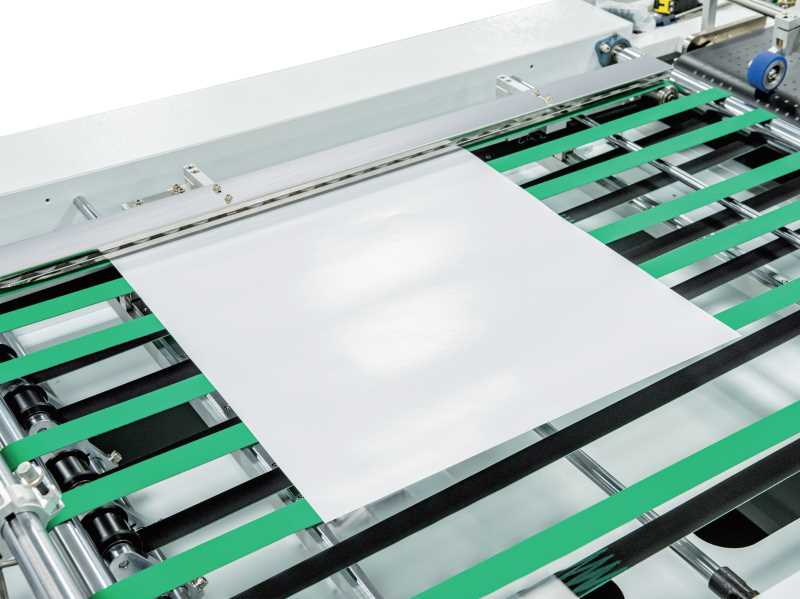

Bead Guiding Device
For precise web alignment
|
| |
|
 |
|
|
45° One-Key Swivel Unloading Device
For quick and efficient changeover
|

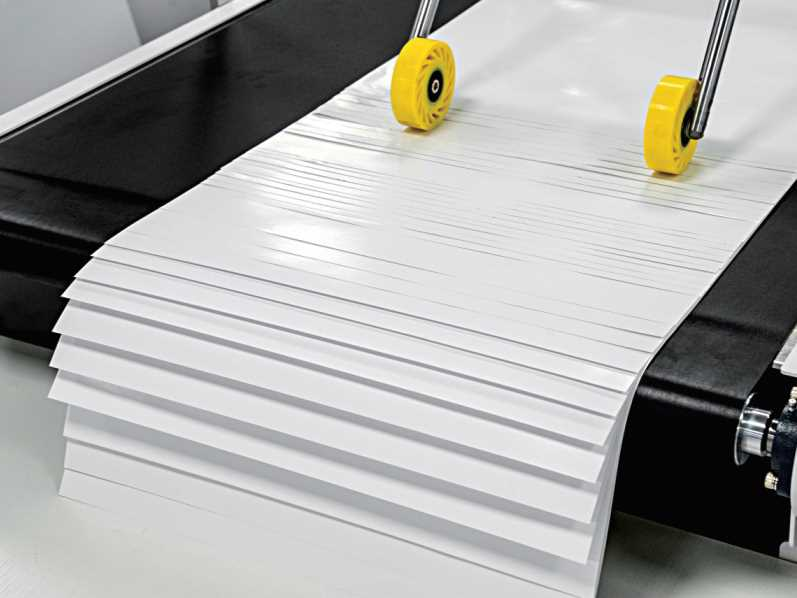

Shingle-Style Stacking Unit
For neat overlapping output
|
Technical Parameters
| Model |
LY-900FD
|
| Max.sheet size |
900*860mm
|
| Min. sheet size |
300*300mm
|
| Width of Tape size |
5-35mm (Optionally available: 8-70mm)
|
| Pasting head |
2pcs (optional extra heads available)
|
| Product thickness |
≥100GSM-2mm
|
| Switch Double-sided Tape Time |
≤ 30 seconds
|
| Speed |
40-90m/min
|
| Accuracy |
±1mm
|
| Power/Voltage |
8KW / AC380V
|
| Machine Dimension |
5500*1540*1650mm
|
| Weight |
1500kg
|
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
